Guide: Logic Gates

Procedure Blocks

You can make the primary logic gates using just a few blocks.

1. Logic operator: The light blue operator with the = sign
2. NOT block: this is used to invert the gate: AND to NAND, OR to NOR, and XOR to XNOR gates;
   It can also invert a logic value; if it's true, it will return as false.

Logic Gates

AND Gate:

OR Gate:

XOR Gate:

NAND Gate:

NOR Gate:

XNOR Gate:

NOT Block:

Default Logic:

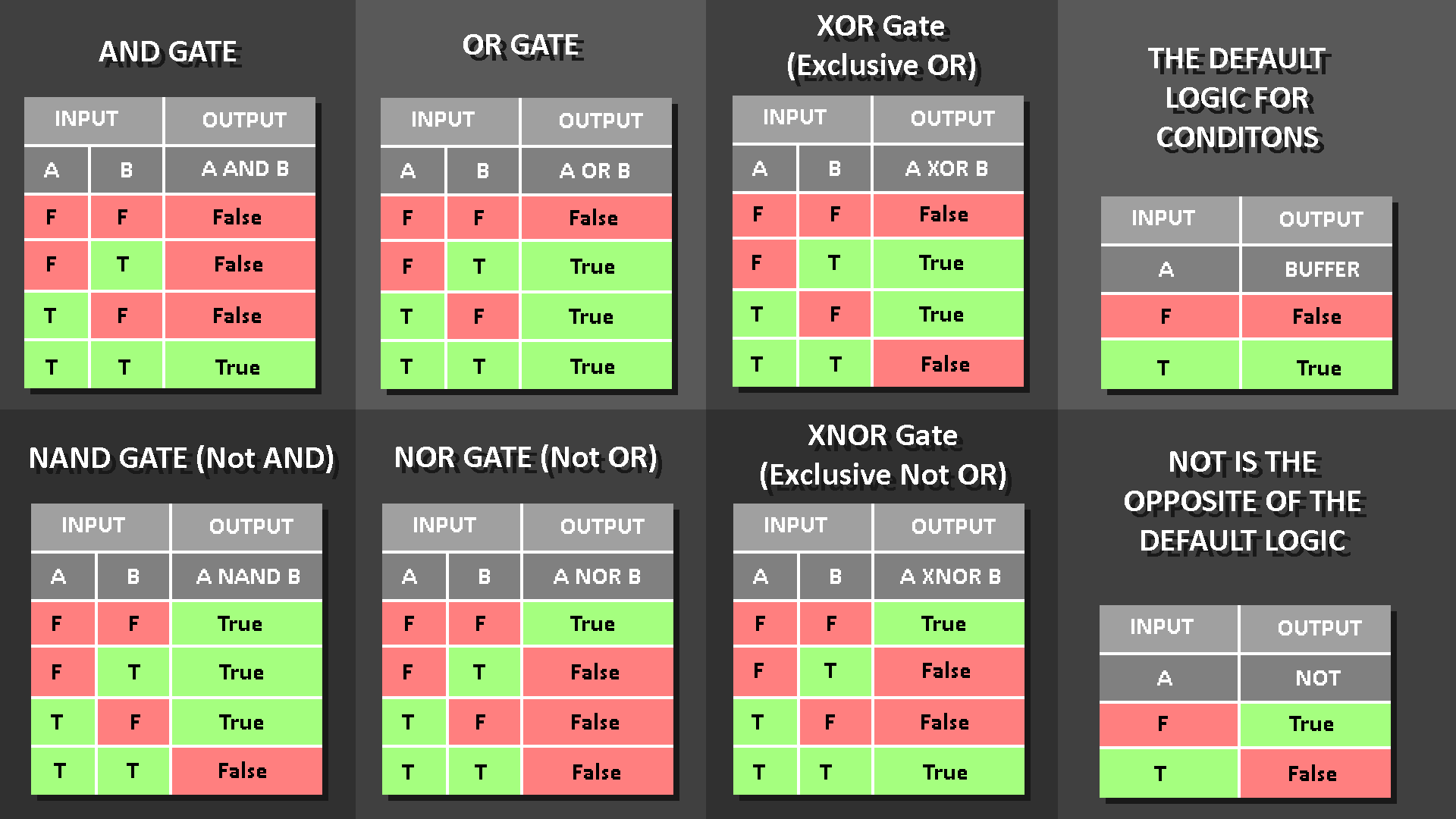

Logic Gate Chart:

Download Chart: https://github.com/MCreator-Examples/.github/blob/main/images/charts/logic_gates.png

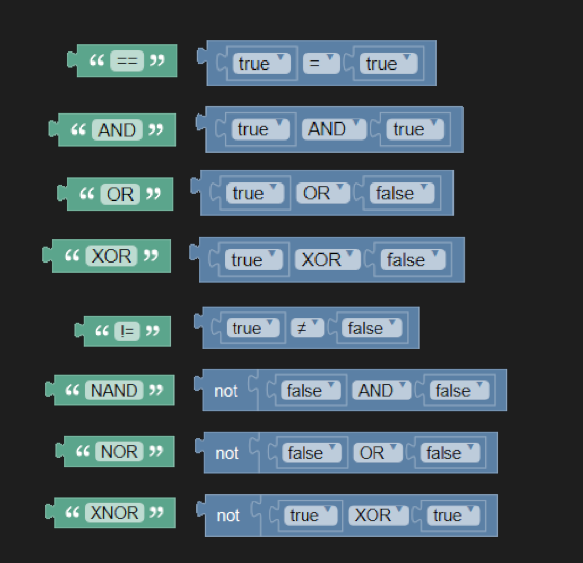

Procedure Example

Tutorials

• Coming Soon!

Conclusion

Using logic gates can open up many possibilities when creating more advanced conditions for your MCreator projects. The most commonly used gates are AND and OR, but there are plenty of scenarios where other gates become incredibly useful.

For example, a NOR gate can be used to test if both outputs are false, while an XNOR gate is helpful when checking if two things are both in the same state (either both on or both off).

I hope this post has sparked some new ideas for your mods and helped expand your approach to designing better procedures for your future projects. Happy modding, guys!
