MCreator 2024.4 - A new era of modding

Published by Klemen on
MCreator 2024.4 - Minecraft resource pack maker, vanilla entity animations, and more!

The last update of the year is here, and we are ending 2024 with a blast! This release is packed with tons of new and exciting features. Read on!

Minecraft resource pack maker

One of the biggest new features of this update is MCreator expanding to a whole new field. One can now make resource packs using our Minecraft mod-making software! Resource pack maker features a completely different UI where the structure of vanilla resources is shown, together with several utilities that allow one to modify and override those resources using our built-in image editor, code editor, and more!

MCreator is now also a Minecraft resource pack maker - it is becoming a multi-purpose Minecraft modding toolkit

The resource pack editing was also added to regular mod workspaces, so one can easily override vanilla resources as part of NeoForge or Minecraft Forge Minecraft mods too.

MCreator Minecraft Resource Pack maker in action

Custom animations for entity models

Another major new feature of this update is support for vanilla custom entity animations, which means for entities, the Geckolib MCreator plugin is no longer needed. Vanilla animations can be exported from Blockbench and imported into MCreator. See an example of such animation below.

Vanilla entity animations coming in MCreator Minecraft mod maker

Below you can see how animations are defined in the living entity editor. Animation specifies speed, amplitude, if it is walking animation and optional condition procedure that defines when the animation should happen. We highly recommend using animations in combination with "Saved sycned entity data" feature. Both vanilla Minecraft and custom animations can be selected and used.

This image demonstrates how animations are added to custom Minecraft entities in MCreator

In order for one to be able to use custom animations, a new tab was added to the Resources section where custom Java animations can be imported. One animation file can contain multiple animations, which is also indicated on the list.

One can also import custom animations that can then be applied to custom Minecraft entity models depending on the selected conditions

Sapling plant type

We are introducing a new plant type - saplings! Yep, now one can make custom saplings with just a few clicks. This also allows one to specify feature that grows from the sapling with quite some configuration around that, allowing things such as big trees and flowered trees.

A new sapling plant type option in Minecraft

See an example of two-by-two sapling that usually grows into big/large tree below, just that in our case, it grows into an end portal :D

Sapling plant type made by MCreator Minecraft mod maker

Texture sprite component type in GUI

A new GUI component type has been added - texture sprite. With it, you can use sprite/tiled texture to show different textures on one region. Combined with procedures, one can make dynamically changing images (e.g. mana bar, progress bar, ...).

A process of adding a texture sprite to Minecraft GUI

GUI component locking

This update adds quite some user experience improvements, and this feature is one of them. With it, you can lock certain components of GUI or overlay from moving, making sure you don't accidentally drag them around.

GUI component locking option that prevents moving of selected components in custom Minecraft GUIs made with MCreator

New fluid visual parameters

Fluids have received some new interesting parameters, including an option to specify overlay texture that is overlaid over the player's view when submerged in the fluid, as well as an option to enable fluid fog, specify fog color, and even specify fog start and end distance, as well as procedurally configure it, allowing for some interesting fog effects.

New Minecraft fluid visual parameters including overlay texture and fog color and render distance

This will make custom fluids much more immersive, as the fog and overlay texture will neatly complement your custom fluids. See an example below!

New fluid visual parameters in action in the Minecraft computer game itself

Waterloggable plants

We already mentioned plants got a new type, but that is not all. Plants can now be configured to be waterloggable, finally allowing one to make proper underwater plants. We can't wait to see all the new mobs populating the underwater worlds with new fauna.

MCreator 2024.4 also adds a new parameter to custom Minecraft plants that specified if they are waterloggable or not

Data pack test Minecraft client

Starting with Minecraft 1.21.1, MCreator now supports running your test data packs from MCreator itself. No more need for exporting the mod and installing it locally every time you want to test out changes. Instead, now you just click the play button, and Minecraft with your data pack loaded and refreshed in all existing and new saves will be prepared for you by MCreator!

MCreator now supports testing data packs directly from within the Minecraft mod making software

Minecraft game execution CPU and memory monitor

We have reworked the test client experience with a new Minecraft performance monitor, that continuously monitors CPU and memory (RAM) usage of the game, allowing one to quickly identify what game aspects load the computer the most, and will also allow users to identify if recent changes in the mod introduced too much burden to the resources. How cool is that?

A new game execution profiler to monitor Minecraft CPU and memory usage to improve Minecraft mod performance

Item special info improvements

Item (and block) special info got some improvements. The first one is that now, hard-coded special information entries are translatable. Existing entries will automatically be added to the Localization tab for you to translate. Now, all parts of your mod can be translated!

Special info of custom Minecraft items is now translatable

We have added a new procedure block to add a new line to the string. While this alone may not be that much of a feature, we have also added support for new-line handling in dynamic special info. More below.

Multiline procedure-based special info of items is now possible in MCreator

This allows one now to have dynamic item special info that extends across multiple lines, allowing multiple lines of dynamic content in the tooltips.

Multiline dynamic special info in Minecraft, made possible by MCreator 2024.4

New dimension parameters

We did not forget about dimensions either. We are adding many new parameters to help you make your dimensions more unique. Noise size can now be scaled vertically and horizontally, sea level can be specified, and one can also disable ore veins or aquifers (fluid placers) if needed.

New dimension parameters in Minecraft mod maker allow one to scale the noise values

But that is not all, other new parameters were also added: fixed time, coordinate scale, infiniburn blocks tag, use the default/custom effects, has clouds, cloud height, sky type, does sun height affect fog, ambient light, piglin safe, has raids, monster spawn (block) light limit

Even more custom Minecraft dimension parameters in MCreator

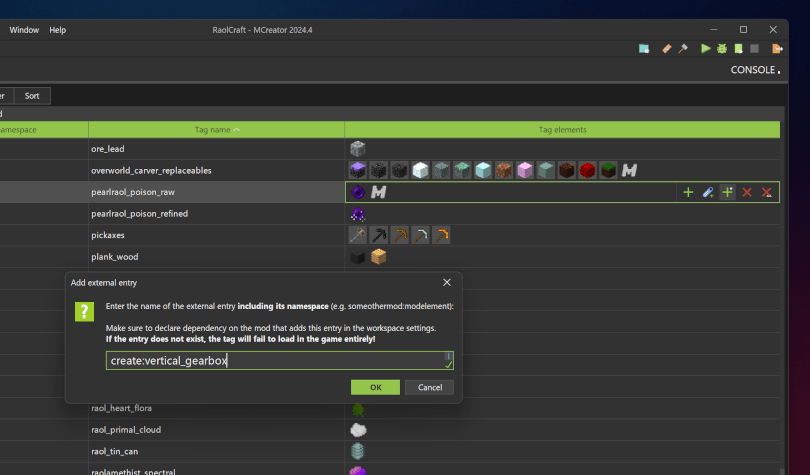

Referencing 3rd party mod elements in tags

Integrations with 3rd party mods are getting even better. Now, one can reference mod elements such as blocks, items, entities, and more from third-party mods in custom tags. This allows one, for example, to check if a certain entity is of type from an external mod, add items and blocks from 3rd party mods into recipes, and much more!

Referencing external 3rd pary mod elements is now possible in Minecraft tags in MCreator

Music discs merged into item mod element

The music disc mod element was merged into the item mod element. Existing music discs will be converted to items automatically. This change now allows one to make a music disc that can be eaten, has ranged attacks, melee damage, and has inventory for storage, for example :D

Music discs are now part of the standard Minecraft item mod element type

Worldgen feature placement generator tool

Have you struggled to make valid placement definitions for your custom features? This is no longer a problem, as MCreator 2024.4 will feature a tool that will allow one to just specify their desired feature placement using a wizard, and it will generate the placement block definition for you. The tool will make sure the blocks are placed in the correct order and with the right values for everything to work as intended.

Worldgen feature placement generator for more conventient feature placements

Potion effect modifiers

Now that custom attributes are a thing, we have added support for specifying attribute modifiers as part of custom potion effects, that are applied for the duration of the effect to the entity that had the effect applied.

Custom potion effects can now specifiy a list of attribute modifiers

Custom creative tab order editor

Now, one can not only specify the order of items in tabs, but the order of the tabs themselves too. Make your mod tab elements organized neater than ever before by having full control over them.

One can now alter order of custom Minecraft creative tabs

Block state property system improvements

Block state property system has received some upgrades too. MCreator now indicates the number of possible state property combinations, making sure one does not define too many combinations, as this can severely impact the game performance or even crash the game.

We have also made it possible for custom blocks to reference existing pre-defined vanilla block state properties, allowing better cross-mod and vanilla compatibility, as using existing properties ties block better into existing game mechanics.

MCreator now supports specifiying vanilla block state properties too and also shows combination count

UI improvements

Last but not least, we have done some small UI and UX improvements across the interface, so it looks a bit prettier and works better with both UIs with background images and without them. Can you spot all these new details?

MCreator also got some small but neat UI changes and improvements

Release notes

  • The music disc mod element type was merged into the item mod element type. Existing mod elements will be converted automatically
  • Certain dimension mod element parameters were split into more granular parameters. Existing mod elements will be converted automatically

Important bug fixes

Many bugs were fixed in this update. All the bug fixes are listed in the list below, but more notable bug fixes are:

  • [Bugfix, NF 1.21.1] Using slot dependency on certain GUI procedure triggers caused build errors
  • [Bugfix] Setting itemstack variables did not work correctly in some cases
  • [Bugfix] Java plugin events could trigger after the action they were listening to happened in some cases
  • [Bugfix] Index of string procedure block caused build errors in some cases

Other improvements

You can see the full list in the full changelog of this release here (some more notable features not mentioned before are highlighted with bold text):

  • Some minor UI and UX improvements
  • Added a button to lock custom GUI and overlay components from moving in the WYSIWYG editor
  • Added an option to import custom Java model animations
  • Added new workspace type: resource pack
  • Added vanilla resource pack editor tool that makes it possible to override resource files from the mod
  • Added easy-to-use placement generator utility to the feature mod element editor
  • Added CPU and memory consumption charts to the Gradle console for mod performance monitoring
  • Certain preferences such as project browser state and element sorting are now stored per-workspace
  • Added an option to reference mod elements from third-party mods in tags
  • Order of custom creative tabs can now be configured
  • Added support for a new plant type: sapling
  • Added an option to make custom plants waterloggable
  • Added option for custom blocks to implement vanilla block state properties
  • Added new dimension mod element parameters: fixed time, coordinate scale, infiniburn blocks tag, sea level, generate ore veins, generate aquifers, horizontal/vertical noise size, use the default/custom effects, has clouds, cloud height, sky type, does sun height affect fog, ambient light, piglin safe, has raids, monster spawn (block) light limit
  • Added new fluid parameters: has fog, fog color, fog start and end distance, submerged overlay texture
  • Potion effects can now specify attribute modifiers that are applied to the entity while the potion is active
  • Split custom biome fog and air color into separate parameters
  • Added an option to specify animations for custom entities that are conditionally executed by procedures
  • Added an option to specify walking animations for custom entities that are optionally conditional
  • Added image sprite GUI component type for GUI and overlay mod element types
  • Loot table mod element editor now shows suggestions for overriding custom block and entity loot tables
  • Item and block special info entries are now translatable
  • Item and block special info based on string procedures now support multi-line strings
  • Added an option to specify infinite effect duration for potion item mod element
  • Added new procedure local variable type: action result
  • Added new damage source procedure blocks: return damage source, call procedure and get damage source return value, custom damage source dependency
  • Added new text procedure block: new line
  • Added new entity procedure blocks: is the entity currently aggressive
  • Added new world procedure blocks: for each entity with optional exclusions between two points, get a specific (block/sky) light level
  • [DP 1.21.1] Added support for running test Minecraft client with data pack loaded in all worlds
  • [Bugfix, NF 1.21.1] Using slot dependency on certain GUI procedure triggers caused build errors
  • [Bugfix] Mod element usage finder did not work correctly in some cases
  • [Bugfix] Improved debugger startup reliability
  • [Bugfix] Setting itemstack variables did not work correctly in some cases
  • [Bugfix] Java plugin events could trigger after the action they were listening to happened in some cases
  • [Bugfix] It was possible to define more block state property combinations than what Minecraft can handle
  • [Bugfix] Index of string procedure block caused build errors in some cases
  • [Bugfix] Index of string and string length procedure blocks specified wrong numeric return type
  • [Bugfix] Some other minor fixes and improvements

Let us know what is your favorite feature of the update in the comments! All other feedback is very welcome too. We are already looking forward to all the new creative mods using all the new features :) If you like what we do, consider donating to help us keep this project up.
